Lonking CDM6025
2650
Operating weight (kg)
0.08
Bucket capacity (m3)
14.6
Rated power (kW@rpm)
2.6/4.4
Travel speed (km/h)
Lonking CDM6025
A versatile solution for challenging spatial conditions.
Your reliable tool for operations where every centimetre counts.
Compact

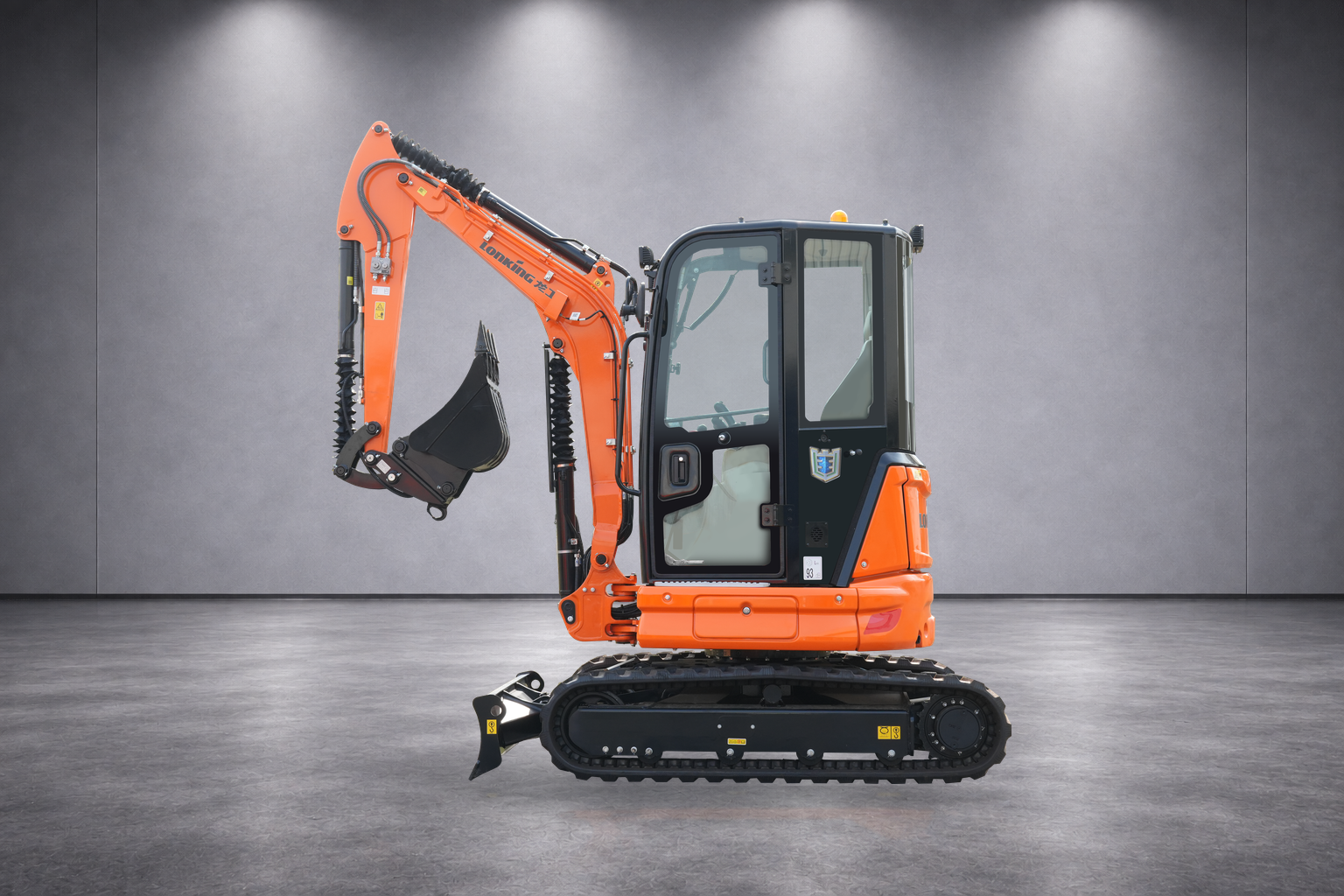

The compact Lonking CDM6025 excavator is designed for efficient operation in densely built-up areas with limited access. This Lonking mini excavator with an operating weight of 2650 kg is equipped with a sturdy 300 mm wide steel crawler chassis and a standard 580 mm bucket, providing excellent stability and manoeuvrability. Thanks to the combination of zero-tail swing and boom swing mechanism, the Lonking CDM6025 excavator is capable of working in the narrowest locations where other compact construction equipment cannot pass.
Multifunctionality
Design
The compact Lonking CDM6025 excavator is designed to quickly adapt to different types of tasks, making it a versatile solution for construction and municipal works. The machine demonstrates high efficiency during the reconstruction of urban areas, preparation of sites for construction, and laying of engineering and linear communications. The basic configuration of the Lonking mini excavator already includes a hydraulic hammer outlet, and the machine can be additionally equipped with 300 mm or 1000 mm buckets and a Quick Hitch system for quick replacement of attachments.
Economy
At the heart of the Lonking CDM6025 excavator is a durable Yanmar 3TNV80-PSU diesel engine with a power output of 14.6 kW (at 2400 rpm), which fully complies with EU Stage V environmental standards. The 26-litre fuel tank allows the mini- -excavator to operate for long periods without refuelling, which has a positive impact on overall operating economy. The well-thought-out layout with doors and bonnet that open to a full angle provides quick access to service points and reduces maintenance costs.
Operator comfort
The operator’s workplace in the Lonking CDM6025 is designed with an emphasis on visibility and ergonomics. The enlarged front windscreen and transparent hatch allow full control of the working area during earthworks. The Lonking mini excavator cab with FOPS/TOPS certified protection is equipped with a suspension seat, heater and modern colour digital display for monitoring machine parameters. Pilot hydraulic control ensures smooth movement, and the option of installing an electro-hydraulic proportional joystick further increases operator productivity.
Exterior
Reliability in every detail
The Lonking CDM6025 is designed for smooth operation in conditions where precision, manoeuvrability and control are important. Thanks to its zero-tail swing design, this mini excavator rotates within the width of its own tracks, minimising the risk of damage to surrounding objects. The boom’s 65° left and 50° right swing allows you to dig trenches close to walls without having to move the entire machine.
Safety during operation is ensured by a sturdy FOPS/TOPS cab, a warning beacon and powerful lighting of the working area. With a maximum traction force of 30.7 kN and the ability to work on slopes up to 30°, the Lonking CDM6025 excavator is a reliable solution for various types of terrain. Digital display on the monitor allows the operator to instantly respond to the status of the machine’s systems and components.
Easy access to the engine and hydraulic components is an important advantage of the Lonking mini excavator. The convenient location of filters and lubrication points significantly reduces daily maintenance time and increases overall operating efficiency.
Interior
Comfort and functionality at work
The combination of an energy-efficient Yanmar engine and a modern hydraulic system provides the Lonking CDM6025 with balanced performance. The 1,267 cc engine runs smoothly under load and maintains low vibration levels, increasing operator comfort. The large capacity of the hydraulic tank (41 litres) contributes to stable system temperature even during intensive operation.
The powerful hydraulic circuit ensures a quick response of the working equipment under load. With a working pressure of 23.5 MPa and a digging force of 24 kN, the Lonking CDM6025 mini excavator can work effectively with hard soils. This ensures high productivity, smooth movements and precision in performing complex operations.
The Lonking CDM6025 demonstrates an optimal balance of power, economy and manoeuvrability. The coordinated operation of all systems ensures stable results and a fast work cycle regardless of the complexity of the tasks at hand.
Technical Parameters
Lonking CDM6025 is the best assistant in any challenge.
Operating weight (kg)
2650
Bucket capacity (m3)
0.08
Rated power (kW@rpm)
14.6
Travel speed (km/h)
2.6/4.4
